SLG 78 VFRB
Feed the SLG 78VFRB with
Skidsteers
Bucket Tractor
Mid Size Excavators
Compact Loaders

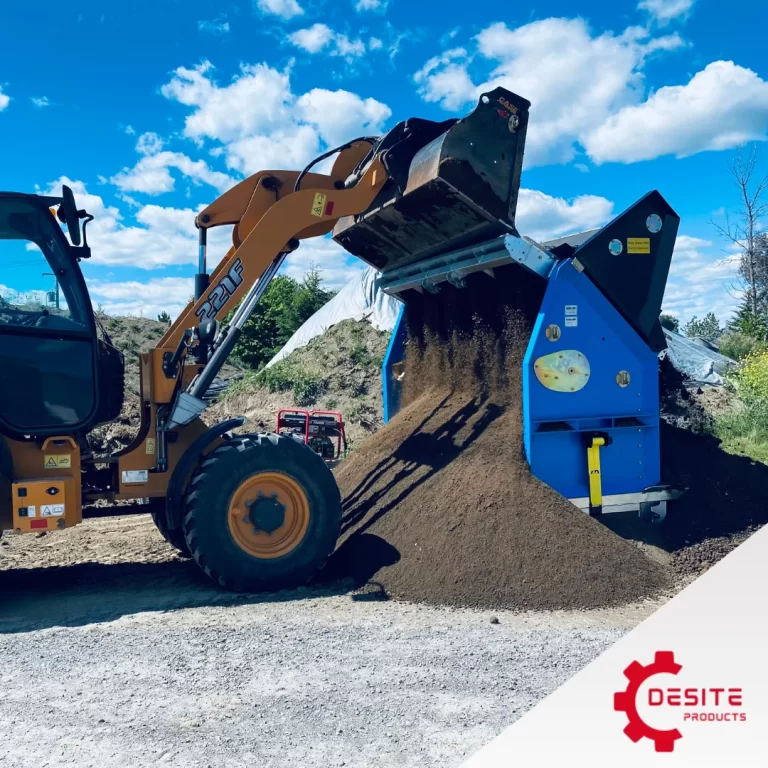

GENERAL DESCRIPTION
Designed and purpose built for your compact excavators, skidsteers and compact loaders.
The SLG 78VFW RB is our most popular screener and can be fed with buckets up to 82 inches wide.
With literally thousands of our screeners out there working, turning waste into profit this SLG 78 series machine will screen and recycle everything from topsoil, to compost, sand and gravel up to erosion control rock and ground asphalt.
yards location
- Arnprior, ON.
- Windsor, NS.
- Clinton, BC.
YOU CAN SCREEN
- Sand
- Topsoil
- Compost
- Wood Mulch
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Ground Asphalt
- Crushed Concrete
- Erosion Control Rock
- Traction Sand
SCREENER FEATURES

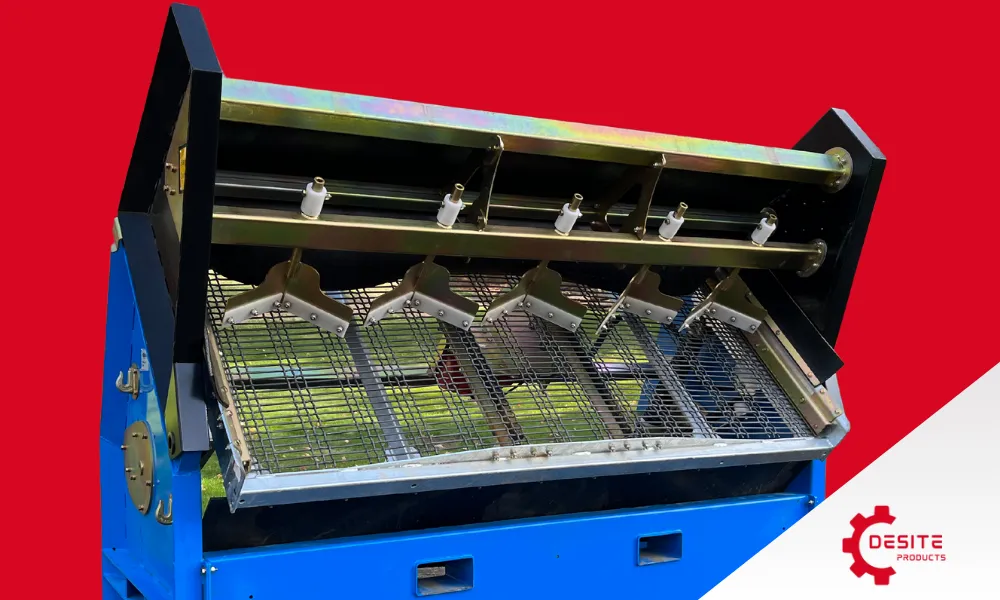

Tilt Open Feeder Deflection System + Flow Control Wings System
The Feeder Deflection System on the 78 creates a 36” x 90” inch feed hopper that allows an excavator with a 36’ or less bucket to feed the screener from all sides. The feeder also is designed to force material to the top of the screen deck to begin the screening process. The feeder also has the ability to tilt open to allowing oversize material to pass over the screen deck.
DeSite Feeder Deflection System :
- Better Screen Deck Area Utilization
- Helps Produce More Yards Per Hour
- Safer Work Environment

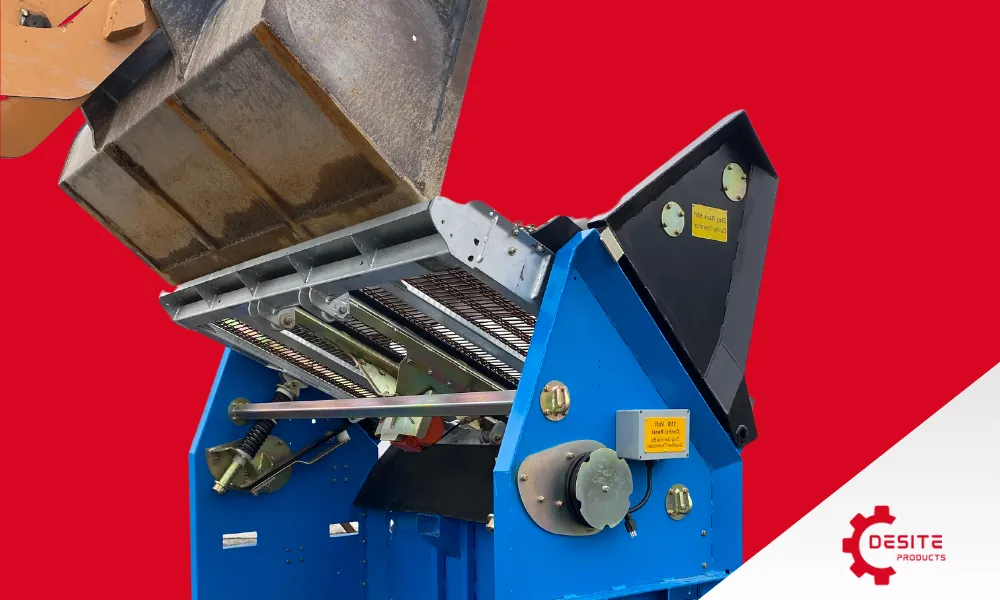

4ft x 7ft Tilting Screen Deck ( galvanized )
Our tilting screen deck design on the SLG 78 give the operator total control to decide the degree of deck slope while feeding the screener. The operator, using the machines buck can take the screen deck from 45 degrees to 30 degrees in 2 seconds by just tilting the bucket downward. No other screener design gives the operator so much vision of the screen deck and the screening process. With such good vision and ability to control the deck slope angle, the SLG 78 can process high moisture material faster and more efficiently.

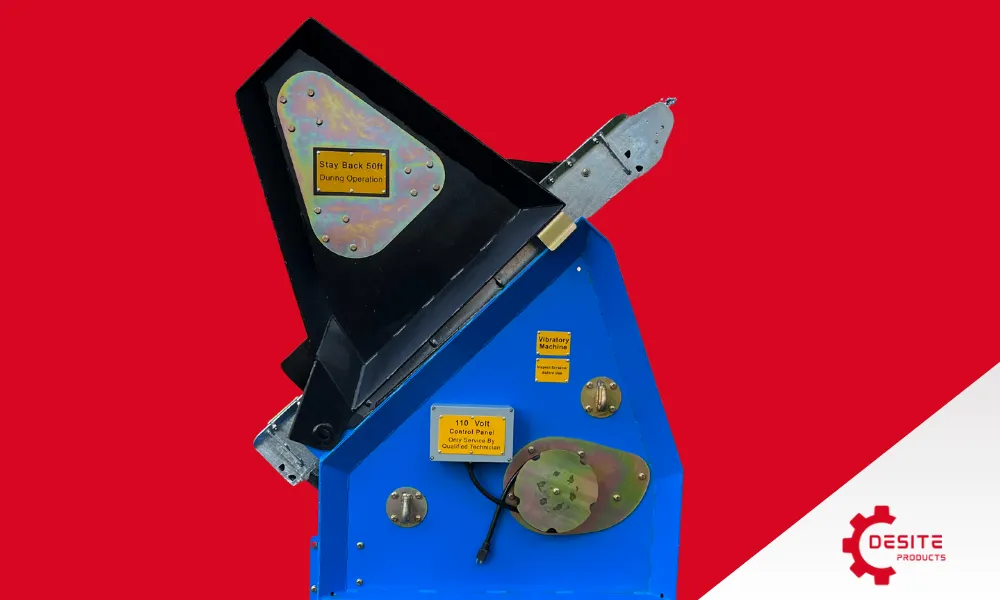

120 Volt (3600rpm) Vibratory Pack / with Power Box
The SLG 78 screen deck has a floating vertical tube system that our 3600rpm 120 volt power pack bolts to. The new vertical tube mount along with our vib pack, produces more vibratory action than ever. We have crowned the screen deck and side tensioned the mesh to prestress the wire making it impact resistant. The SLG 78 is extremely efficient and requires only a 4500 watt generator, or 120 land power if within 75ft. Built into the power box we have install the starting capacity to the energy for the vibratory motor on start up. The SLG 78 comes with a heavy duty 10 gauge power cord that is hard wire into the power box.

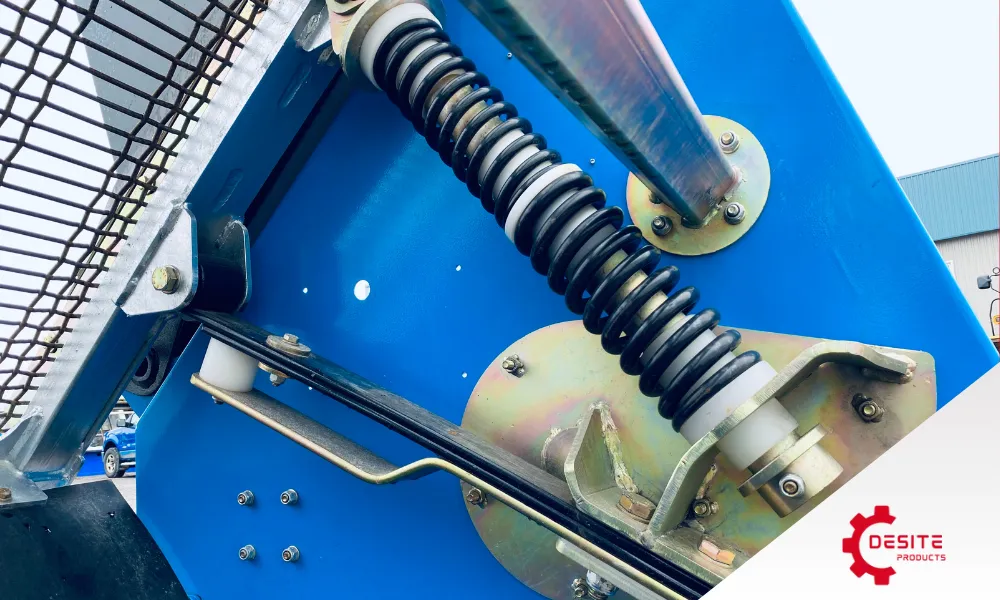

Cantilevered Screen Deck Suspension System
Our rugged cantilevered screen deck suspension works amazing.
Built to absorb the shock of a bucket making contact with the screen deck, this suspension system works to cantilever the screen deck. Pushing down on the top of the screen deck with the operators bucket brings the bottom up to create an action / reaction. This allows the screen deck to tilt faster up and down using less deck movement for a more aggressive screening action.
No other screener design has this ability to jump the screen deck up and down for dislodging rocks, sticks, and sod.
SCREENER ACCESSORIES

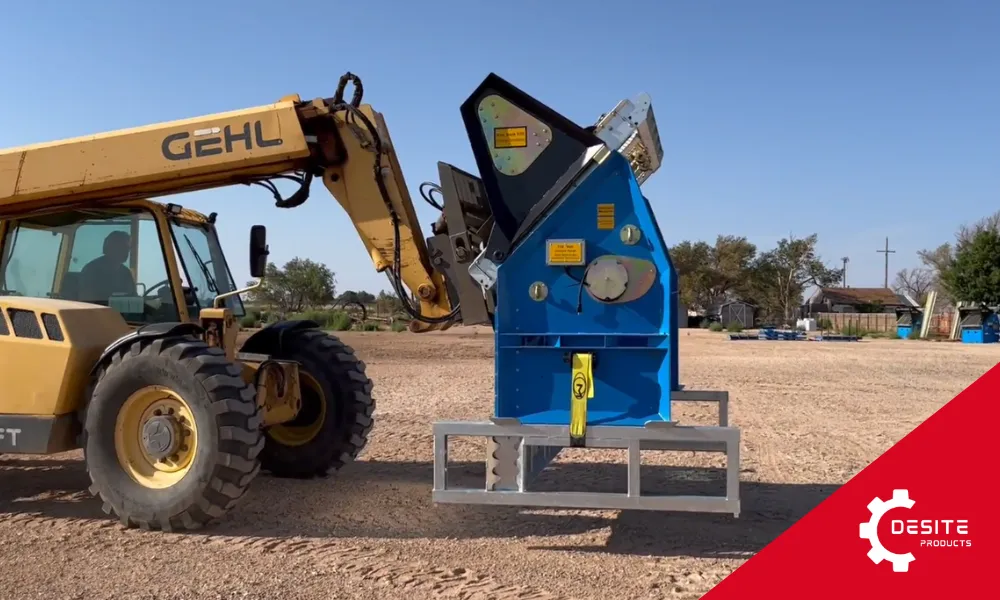

Bucket Transportation Lugs
The BUCKET TRANSPORT LUGS is a fast transport system that doesn't require a trailer or wheels. Simply attach the bucket transport lugs—a process that takes just 2 minutes—grab your bucket, and lift the screener. It's a very straightforward process. We understand that some screening locations can be difficult to access, which is why we designed our screeners with portability in mind.Our fork and bucket lug transport system eliminates the need for wheels, axles, hitches, and wiring, reducing maintenance and simplifying the transport process.
- Quick Transport System: The Bucket Transport Lugs provide a fast and efficient way to move your screener without the need for a trailer or wheels.
- Easy Attachment: Attaching the bucket transport lugs is a simple process that takes just 2 minutes.
- Effortless Lifting: Once attached, you can easily lift the screener with your bucket, making the transport process straightforward.
- Designed for Difficult Locations: The system is ideal for use in screening locations that are challenging to access, enhancing the portability of our screeners.
- Portability Focused: Our screeners are designed with portability in mind, ensuring you can easily move them wherever needed.
$371.25 CAD

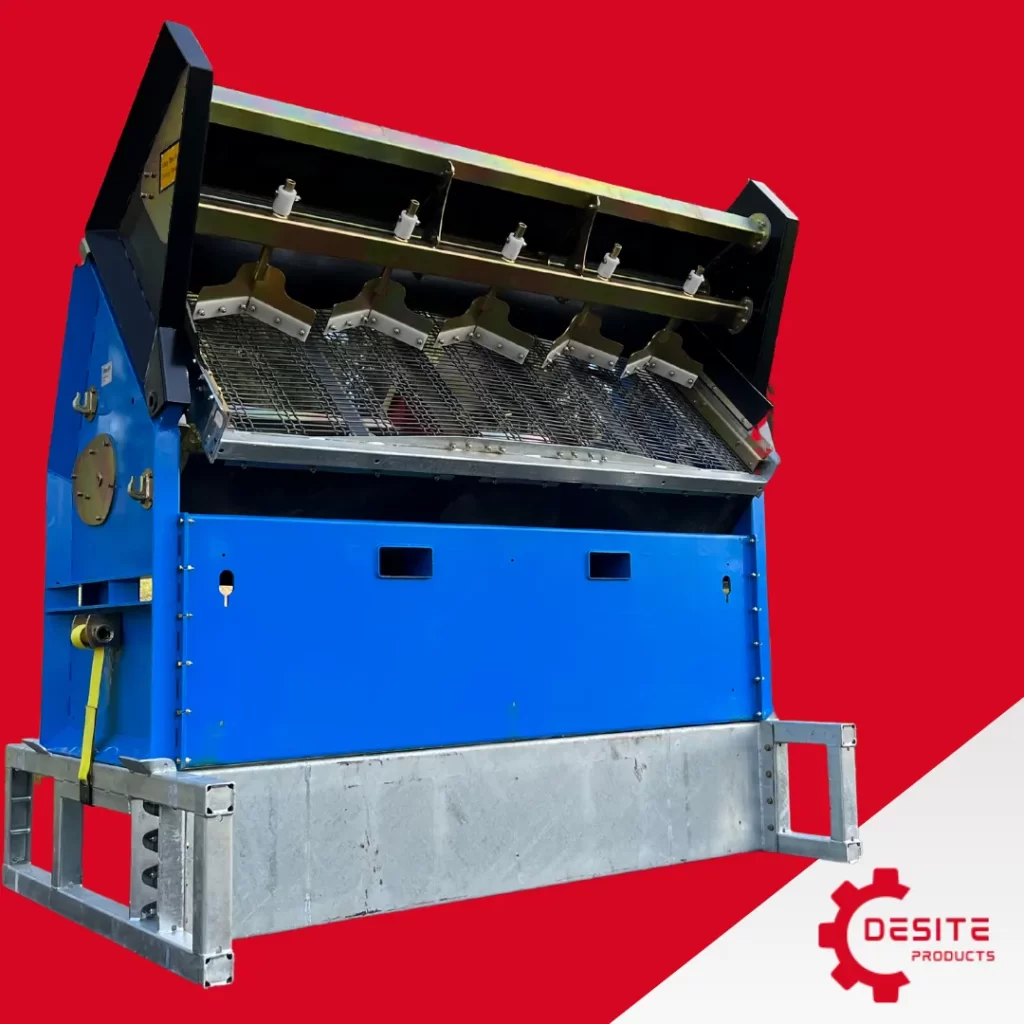

Quick Disconnect Riser Box
The SLG 78 Riser Box elevates the screener to an 8ft feed height for comfortable use with bigger skidsteers, compact excavators and compact loaders with bucket up to 82 inches wide.
Off the rise the feed height is 6ft and works well with smaller sub compact equipment.
Material storage capacity doubles to 4 cubic yards of both finished product and overs when up on the riser box.
Connecting or disconnecting the riser box takes less than two minutes by removing the 4” nylon straps from the tie down winches
- Increased Storage Capacity: The Riser Box allows for more storage on both sides of the screener, enabling longer screening sessions without needing to collect finished materials.
- Extended Screening Time: With the added storage, you can screen more material before having to pause to collect your product.
- Additional Height: The Riser Box provides extra height, making it compatible with larger equipment, enhancing the versatility of the screener.
- Versatile Usage: Ideal for use with equipment of varying sizes, the Riser Box adapts to different operational needs.
$1,950 CAD
MACHINE SPECIFICATIONS
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 98 inches |
| Machine Height | 104 inches |
| Machine Depth | 72 inches |
| SCREEN DECK | |
| Screen Deck Width | 80 inches |
| Screen Deck Length | 52 inches |
| Screen Deck Surface area | 29 sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| VIBRATORY SYSTEM | |
| Vibratory Style System | Dual Eccentric Armature |
| Eccentric Rotation Speed | 3600 rpm |
| Amperage Draw | 10 each on start up with 5 Amps Amp draw per motor at 3600rpm |
| Eccentric Force rotation | 760 lbs per/revolution |
| ELECTRICAL POWER SUPPLY | |
| North America | 110 Volt ( 60 Hertz ) |
| Europe | 220 Volt ( 50 Hertz ) |
| South America | 110 Volt ( 60 Hertz ) |
| WEIGHT | |
| Total Weight with riser box | 2500 lbs |
| Total Weight without riser box | 2000 lbs |
ABOUT MESH
TALK ABOUT MESH
square
We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.By directing material flow to the top of the screen deck, this system ensures maximum production and efficiency. The SLG 108's deflector is designed with flexibility in mind, allowing it to open and close as needed to manage oversized materials effectively. Additionally, the 108's feed deflector fits into our quick disconnect lugs, making it easy to remove when necessary.
Elongated
Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.
QUICK CHANGE MESH SYSTEM
One person can access and easily remove the mesh clamp bolts on each side and middle of the screener. At the bottom of the screen deck we have laser cut the plate to hold the mesh in place until you are ready to remove it. After removing the mesh simply install the new mesh and reinstall and tighten the bolts on each side.
MESH GUIDE
square
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 5/32" x 5/32" | Square | 1/16" |
| 1/4" x 1/4" | Square | 1/8" |
| 3/8" x 3/8" | Square | 1/4" |
| 1/2" x 1/2" | Square | 3/8" |
| 1" x 1" | Square | 3/4" |
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
Elongated
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3/8" x 4" | Elongated | 1/4" to 5/16" |
| 1/2" x 4" | Elongated | 3/8" to 7/16" |
| 3/4" x 4" | Elongated | 1/2" to 9/16" |
| 1" x 4" | Elongated | 3/4" to 7/8" |
SCREEN MESH RECOMENDATION CHART
Topsoil and Triple Mix
Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil.
| Mesh Size | Product Size |
|---|---|
| 1/8 x 4” elongated mesh | 1/16 minus product |
| 1/4 x 1/4 square mesh | 1/8 minus product |
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| Mesh Size | Product Size |
|---|---|
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
COMPOST
Compost and either be a top dressing product used fertilizer / soil builder or can be used to create a triple mix with sand and topsoil.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Wood Mulch
Wood mulch is a light product that travels over the screen deck differently that a soil or aggregate product. It is recommended to run a bit bigger mesh. Often people will screen out the fines and mix it into the topsoil for slow release decomposition. It is a great way to recycle the wood fines.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Commercial Grade or Triple Mix Topsoil
This is the mixture of topsoil / sand / compost to create a product that normally commands a premium price.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Aggregate Products
Pea Stone
Often used in play grounds or for decoration. Pea stone usual commands a premium price asmost aggregate gets crushed and too sharp for pea stone.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Decorative Stone
In some regions water is restricted for yard use so decorative rock is the manageable and cost effective solution.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Top Coarse Gravel
Finer road gravel works great for capping roadways.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
Septic Stone
Many regions still use stone in their septic fields for the evaporation process.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
Base Rock Gravel
The ability to separate out the smaller gravel make for a much better and more stable road base. I also then allows for the fines to be spread on top of the base coarse for a gradable surface.
| Mesh Size | Product Size |
|---|---|
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Ground Asphalt
The screening and recycling of ground asphalt has become popular with the material coming in off repaving project. Once screened many people use the fine material on driveways and the bigger material on roads and lots with heavier traffic.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
Crushed Concrete
Screened crushed concrete makes great base material when building roads.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Erosion Control Rock
Water flow can do a lot of damage through erosion. Erosion control rock works great to stabilize slopes or around culverts to reduce erosion during heavy rains.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
