SLG 68 V

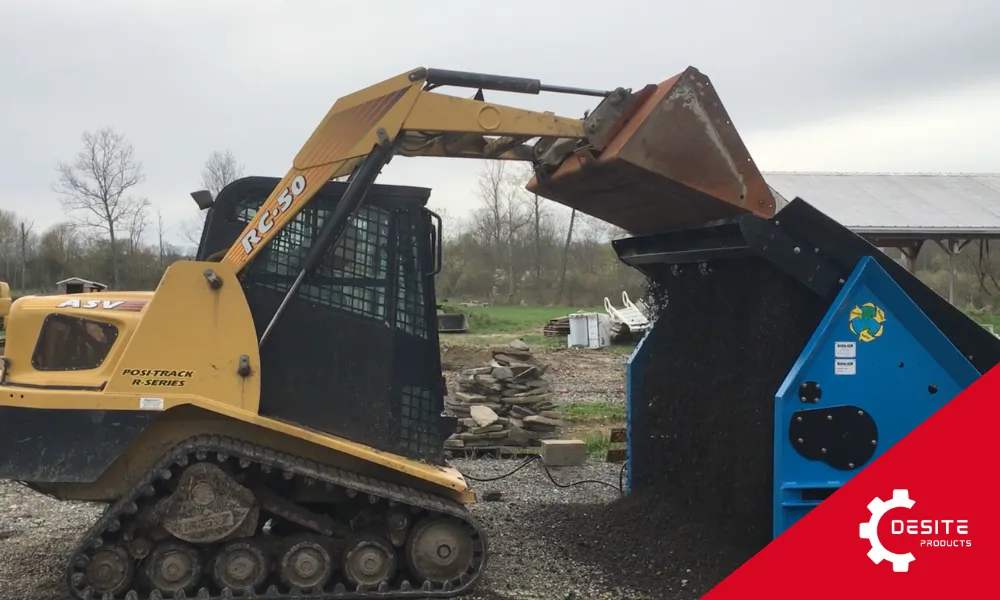

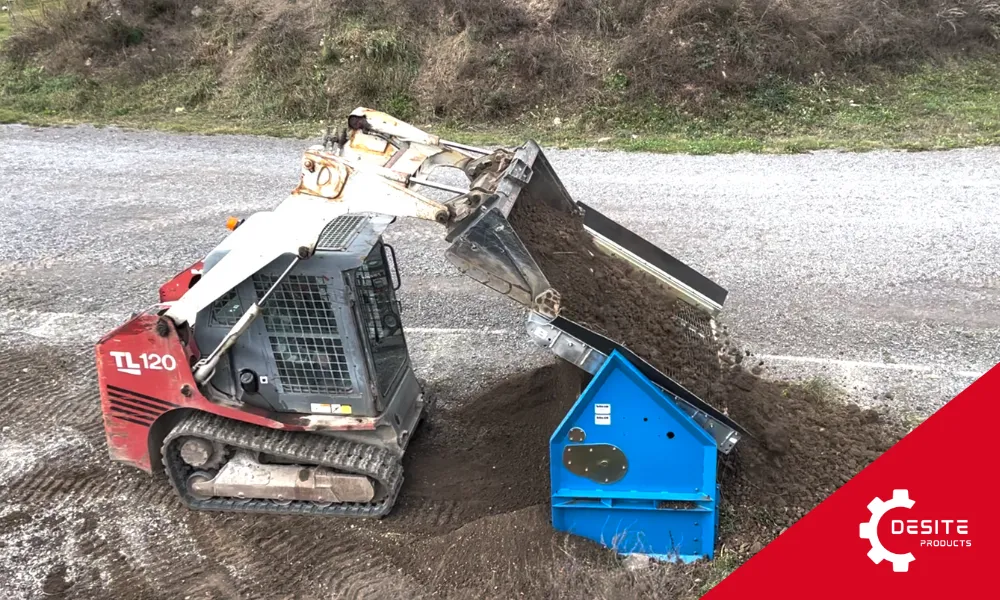

Feed the SLG 68V with
Mini Skidsteers
Sub Compact tractors
Mini excavators

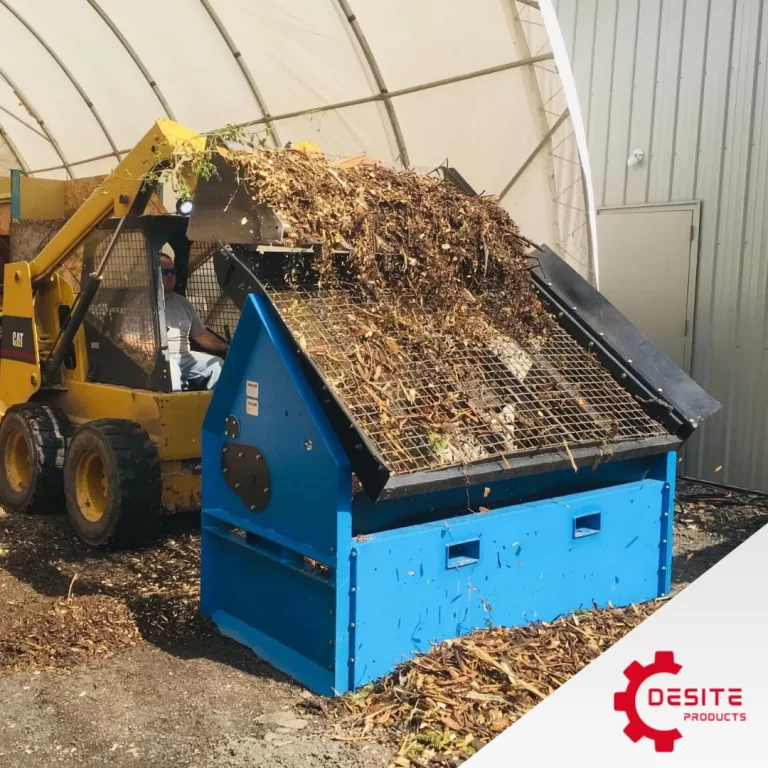

GENERAL DESCRIPTION
Without a doubt the DeSite 68V is the toughest and most versatile sub compact vibratory screener on the market. If you own mini equipment with a 66 inch or less bucket the SLG 68V is a great investment into screening independence.
The 68V can be fitted with meshes big and small from a 4 x 4 mesh all the way down to 1/8 in both square and elongated for screening high moisture materials.
Hourly screener output is rated at 10 to 15 cubic yards per hour

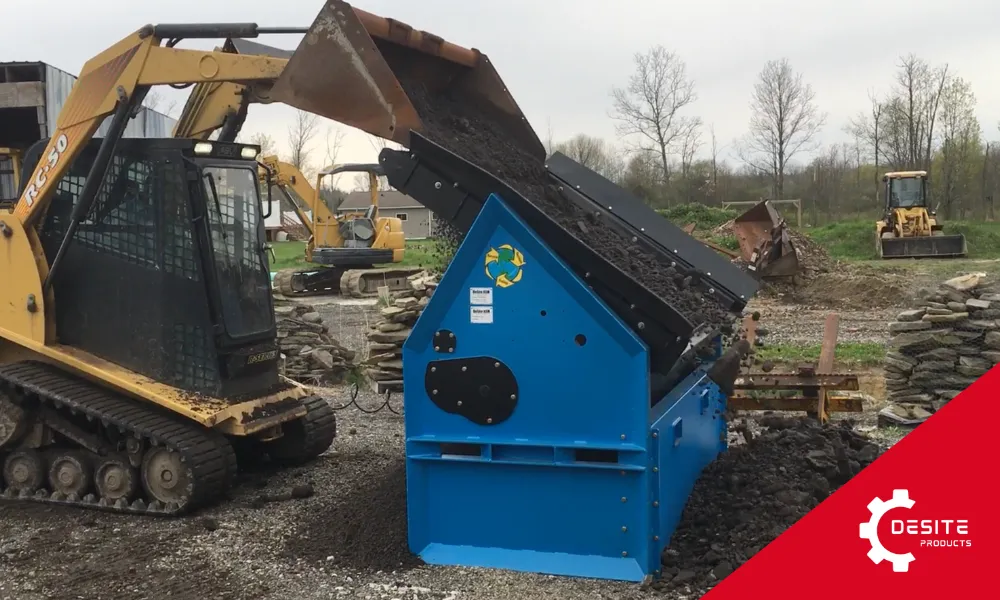

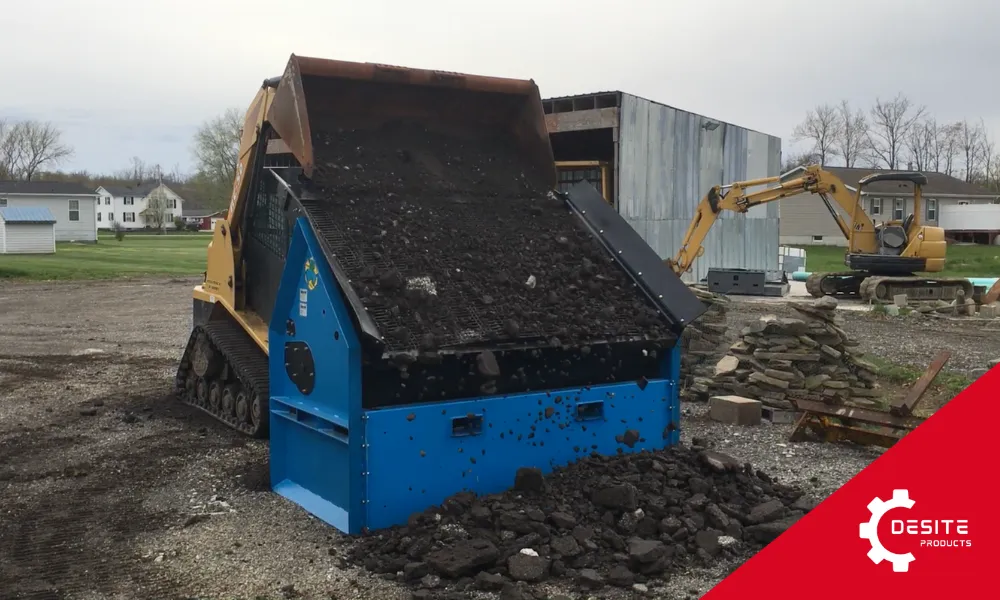

With built in fork pockets for moving 68 around onsite this screener is highly portable. Staying close to the product being screened is the secret to good hourly production.
yards location
- Arnprior, ON.
- Windsor, NS.
- Clinton, BC.
YOU CAN SCREEN
- Sand
- Topsoil
- Compost
- Wood Mulch
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Ground Asphalt
- Crushed Concrete
- Erosion Control Rock
- Traction Sand
SCREENER FEATURES

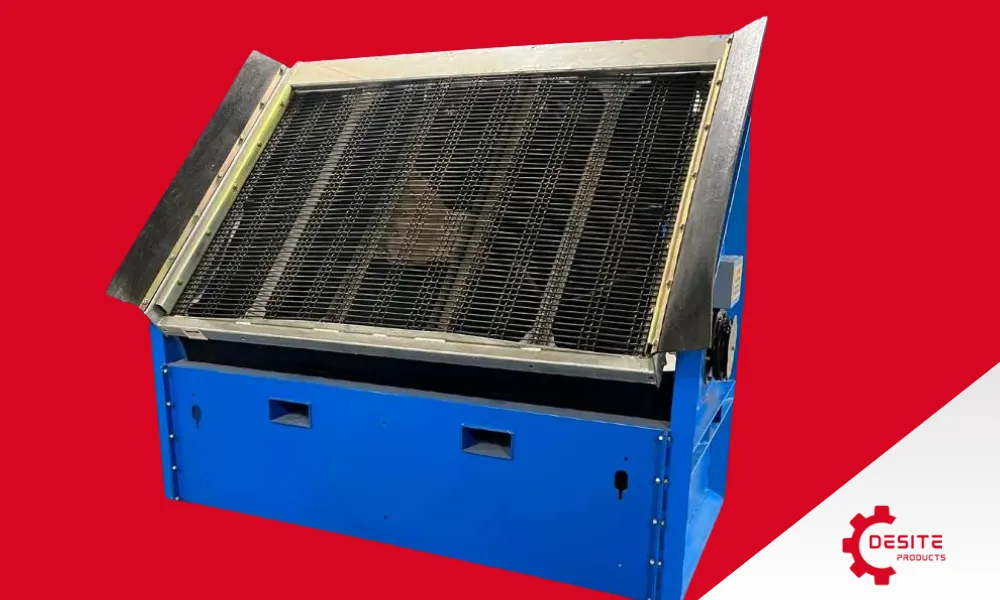

RUBBER SCREEN DECK SKIRTS
The 68V screen deck is equipped with rubber skirts on each side, designed to catch any stray material that might fall from the bucket and miss the deck. These skirts are made of flexible rubber, allowing them to bend and flex if they are accidentally hit by the bucket, ensuring durability and minimizing damage.

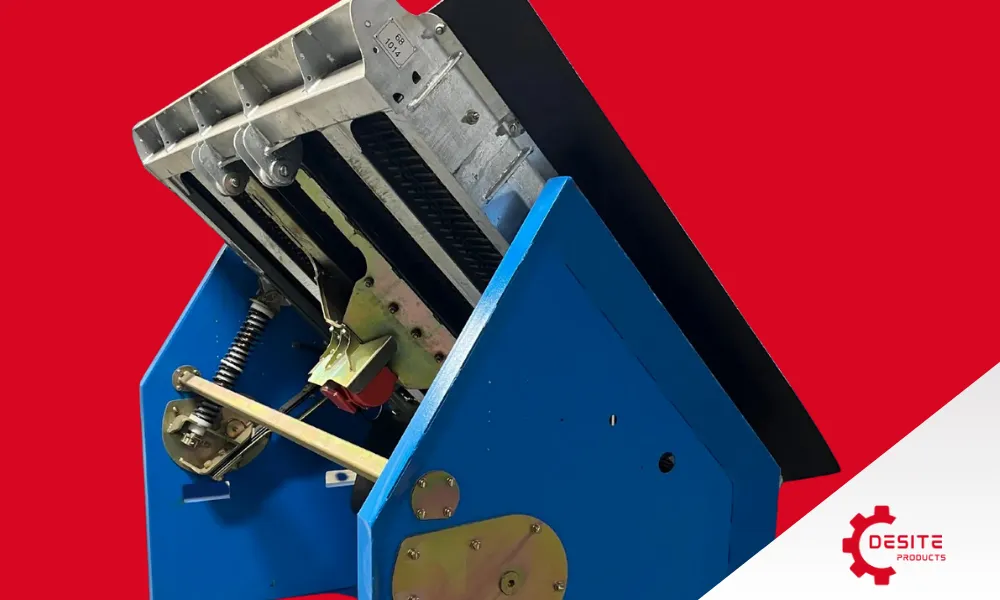

Cantilevered Screen Deck Suspension System
The 68V uses the same rugged cantilevered screen deck suspension system as the 78 screener.

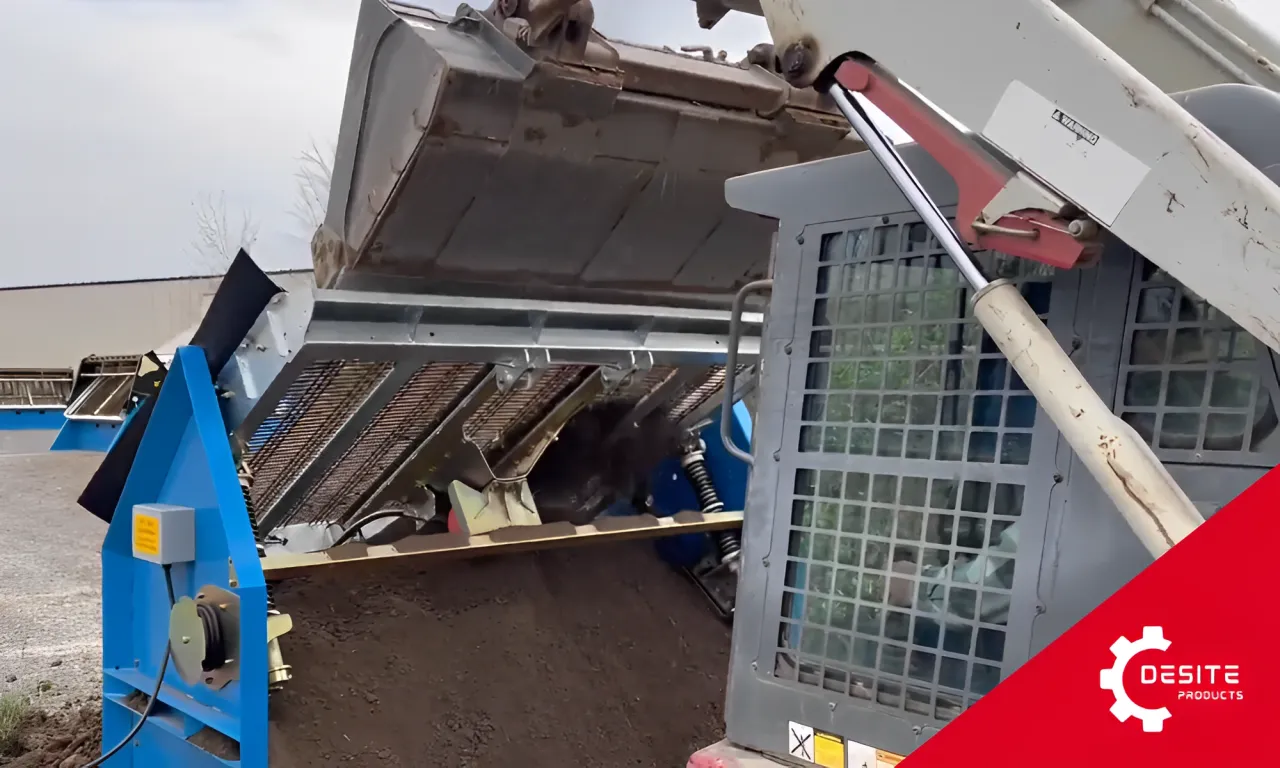

Built to absorb the shock of a bucket making contact with the screen deck, this suspension system works to cantilever the screen deck. Pushing down on the top of the screen deck with the operators bucket brings the bottom up to create an action / reaction. This allows the screen deck to tilt faster up and down using less deck movement for a more aggressive screening action.
No other screener design has this ability to jump the screen deck up and down for dislodging rocks, sticks, and sod.

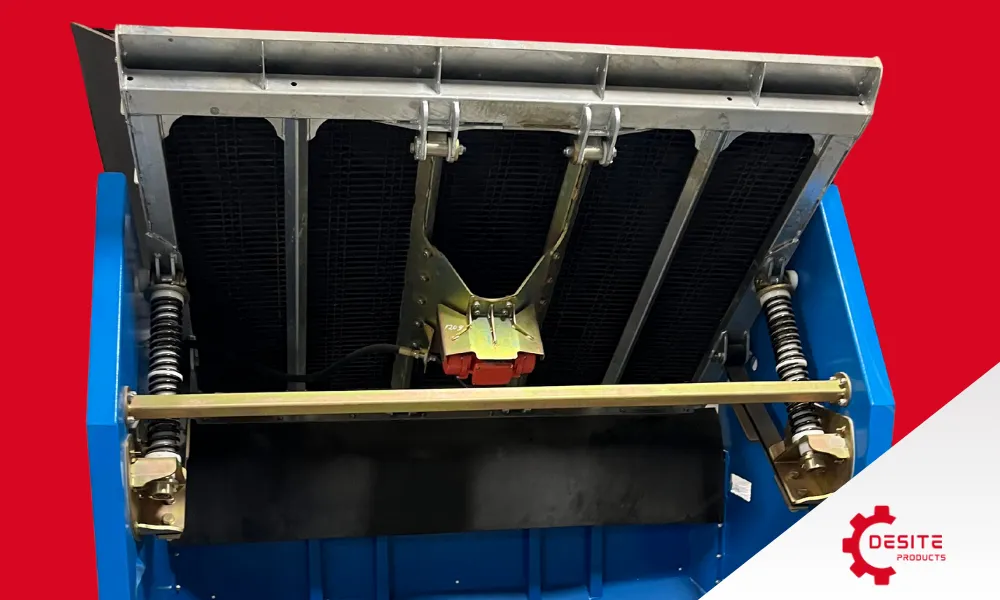

120 Volt (3600rpm) Vibratory Pack / with Power Box
The SLG 68 screener comes with a 3600rpm 120 volt power pack that aggressively vibrates the wire mesh to resist wet materials sticking to the wire and plugging the mesh. We have crowned the screen deck and side tensioned the mesh to prestress the wire making it impact resistant. The SLG 68 is extremely efficient and requires only a 4500 watt generator, or 120 land power if within 75ft. Built into the power box we have install the starting capacity to the energy for the vibratory motor on start up. The SLG 68 comes with a heavy duty 10 gauge power cord that is hard wire into the power box.

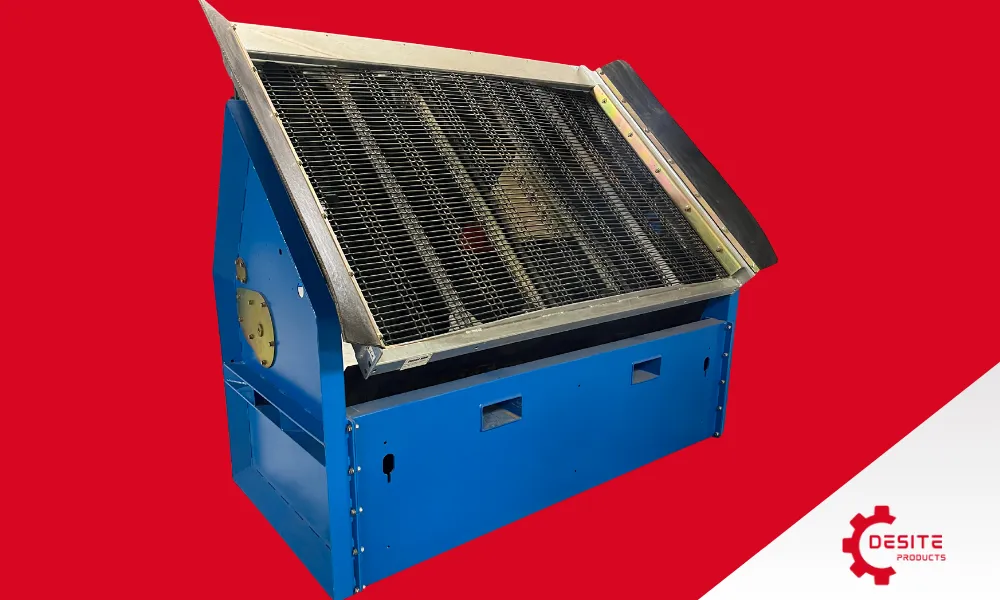

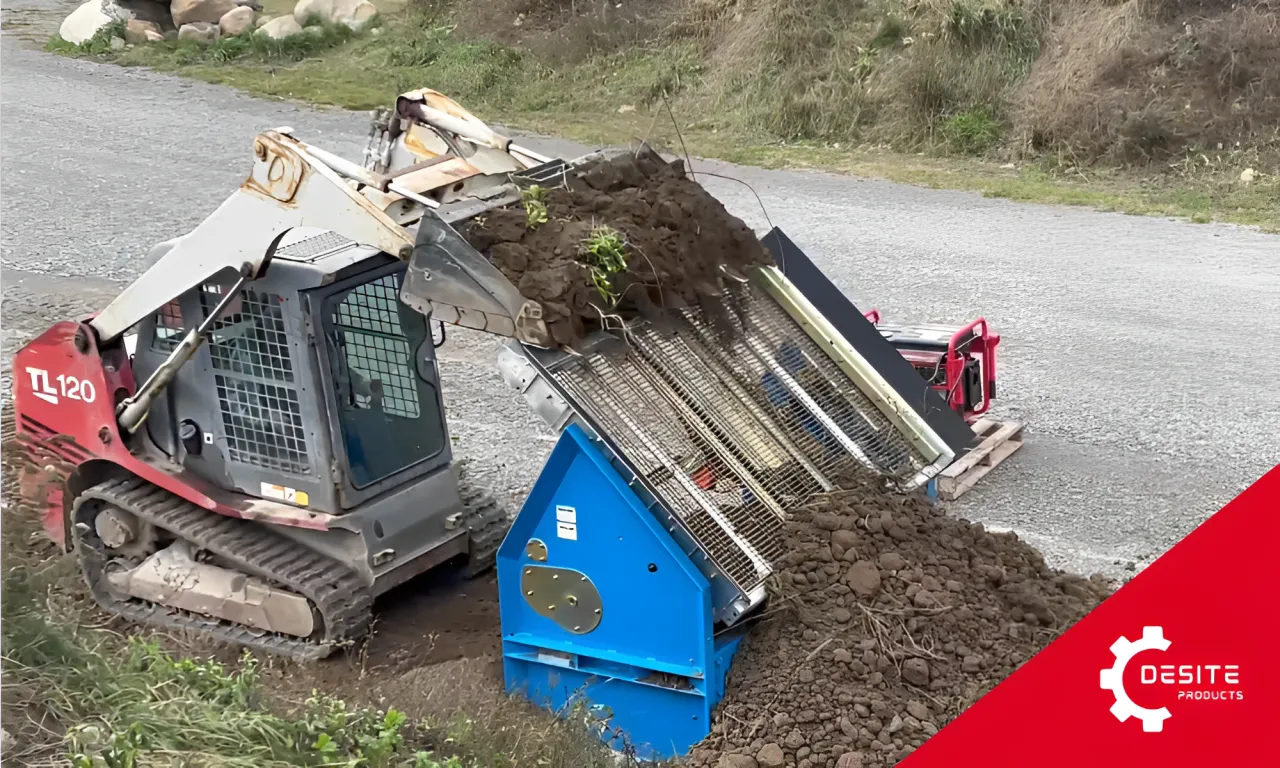

4ft x 6ft Tilting Screen Deck ( galvanized )
The tilting screen deck on the 68V gives the operator total control to manipulate the screen deck as needed to match the deck slope to the material being screened. Steeper for wet and flatter for dry soils and gravels and rock.
Screen deck visibility is important when screening. With DeSite screeners the operator has the ability see the entire underside of the screen to see how the material is processing.
SCREENER ACCESSORIES

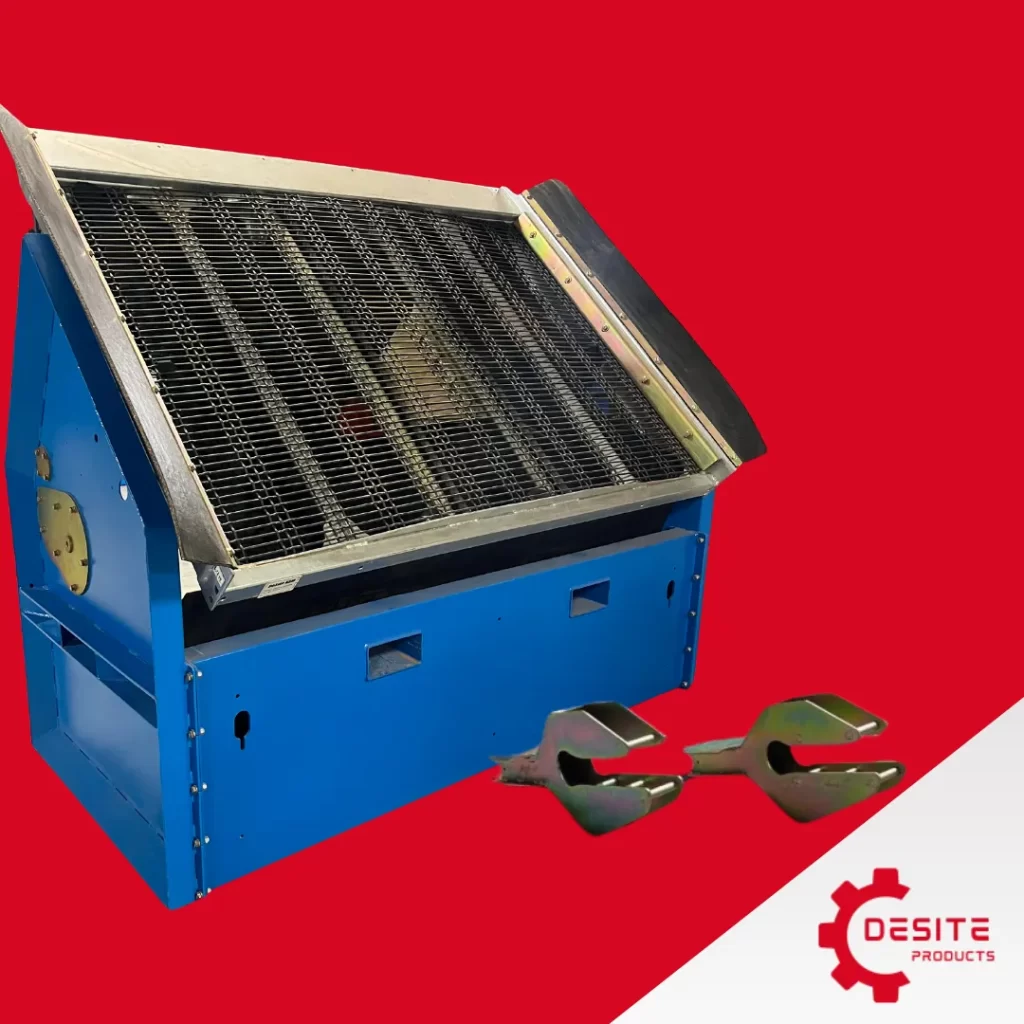

BUCKET TRANSPORT LUGS
For moving the SLG 68V around the job site, our Bucket Transport Lugs provide a time-saving solution that eliminates the need for pallet forks. These lugs slide directly into the fork pockets and feature a retention hole to securely lock them in place. Once installed, you can easily pick up the screener with your bucket and move it quickly and efficiently. There’s no need for a hitch, wheels, wiring, or digging—just simple, hassle-free transport.
$371.25 CAD
MACHINE SPECIFICATIONS
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 89 inches |
| Machine Height | 74 inches |
| Machine Depth | 48 inches |
| SCREEN DECK | |
| Screen Deck Width | 68 inches |
| Screen Deck Length | 52 inches |
| Screen Deck Surface area | 27 sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| VIBRATORY SYSTEM | |
| Vibratory Style System | Dual Eccentric Armature |
| Eccentric Rotation Speed | 3600 rpm |
| Amperage Draw | 10 each on start up with 5 Amps Amp draw per motor at 3600rpm |
| Eccentric Force rotation | 760 lbs per/revolution |
| ELECTRICAL POWER SUPPLY | |
| North America | 110 Volt ( 60 Hertz ) |
| Europe | 220 Volt ( 50 Hertz ) |
| South America | 110 Volt ( 60 Hertz ) |
| WEIGHT | |
| Total Weight | 1500 lbs |
ABOUT MESH
TALK ABOUT MESH
square
We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.By directing material flow to the top of the screen deck, this system ensures maximum production and efficiency. The SLG 108's deflector is designed with flexibility in mind, allowing it to open and close as needed to manage oversized materials effectively. Additionally, the 108's feed deflector fits into our quick disconnect lugs, making it easy to remove when necessary.
Elongated

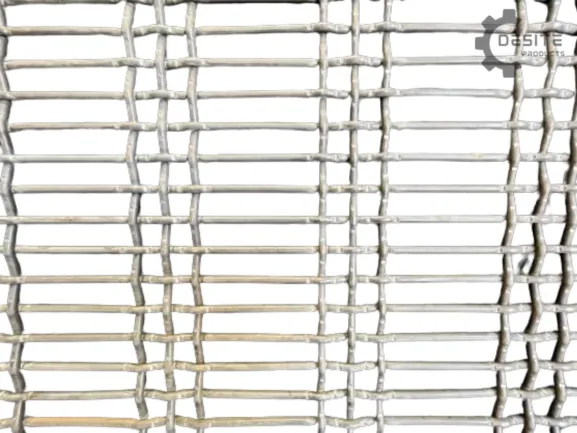

Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.
MESH GUIDE
square
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 5/32" x 5/32" | Square | 1/16" |
| 1/4" x 1/4" | Square | 1/8" |
| 3/8" x 3/8" | Square | 1/4" |
| 1/2" x 1/2" | Square | 3/8" |
| 1" x 1" | Square | 3/4" |
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
Elongated
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3/8" x 4" | Elongated | 1/4" to 5/16" |
| 1/2" x 4" | Elongated | 3/8" to 7/16" |
| 3/4" x 4" | Elongated | 1/2" to 9/16" |
| 1" x 4" | Elongated | 3/4" to 7/8" |
SCREEN MESH RECOMENDATION CHART
Topsoil and Triple Mix
Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil.
| Mesh Size | Product Size |
|---|---|
| 1/8 x 4” elongated mesh | 1/16 minus product |
| 1/4 x 1/4 square mesh | 1/8 minus product |
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| Mesh Size | Product Size |
|---|---|
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
COMPOST
Compost and either be a top dressing product used fertilizer / soil builder or can be used to create a triple mix with sand and topsoil.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |

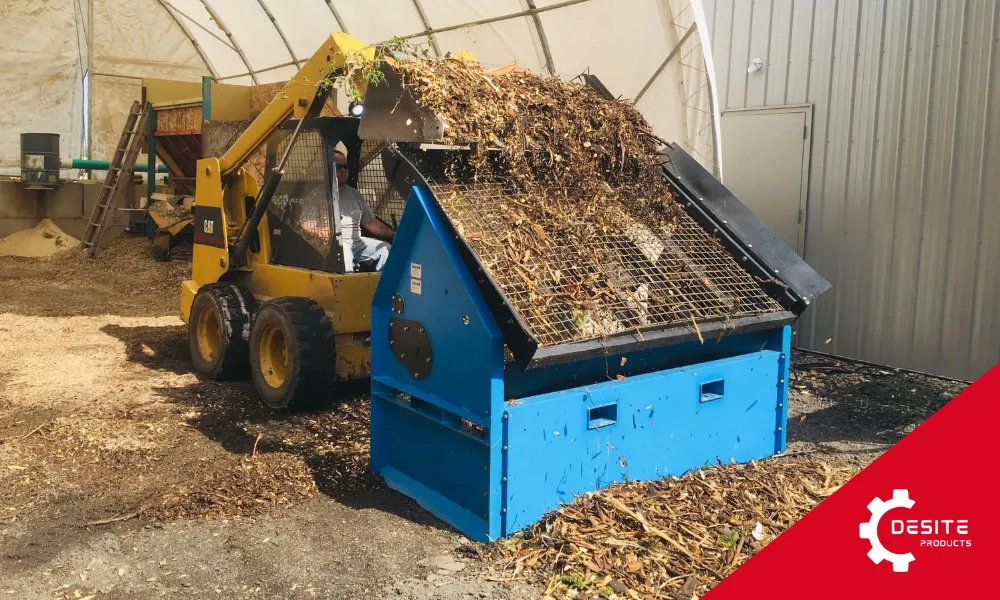

Wood Mulch
Wood mulch is a light product that travels over the screen deck differently that a soil or aggregate product. It is recommended to run a bit bigger mesh. Often people will screen out the fines and mix it into the topsoil for slow release decomposition. It is a great way to recycle the wood fines.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Commercial Grade or Triple Mix Topsoil
This is the mixture of topsoil / sand / compost to create a product that normally commands a premium price.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Aggregate Products
Pea Stone
Often used in play grounds or for decoration. Pea stone usual commands a premium price asmost aggregate gets crushed and too sharp for pea stone.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Decorative Stone
In some regions water is restricted for yard use so decorative rock is the manageable and cost effective solution.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Top Coarse Gravel
Finer road gravel works great for capping roadways.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
Septic Stone
Many regions still use stone in their septic fields for the evaporation process.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
Base Rock Gravel
The ability to separate out the smaller gravel make for a much better and more stable road base. I also then allows for the fines to be spread on top of the base coarse for a gradable surface.
| Mesh Size | Product Size |
|---|---|
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Ground Asphalt
The screening and recycling of ground asphalt has become popular with the material coming in off repaving project. Once screened many people use the fine material on driveways and the bigger material on roads and lots with heavier traffic.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
Crushed Concrete
Screened crushed concrete makes great base material when building roads.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Erosion Control Rock
Water flow can do a lot of damage through erosion. Erosion control rock works great to stabilize slopes or around culverts to reduce erosion during heavy rains.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
