TOPSOIL SCREENER 108VFRB -

SLG 108 VFRB

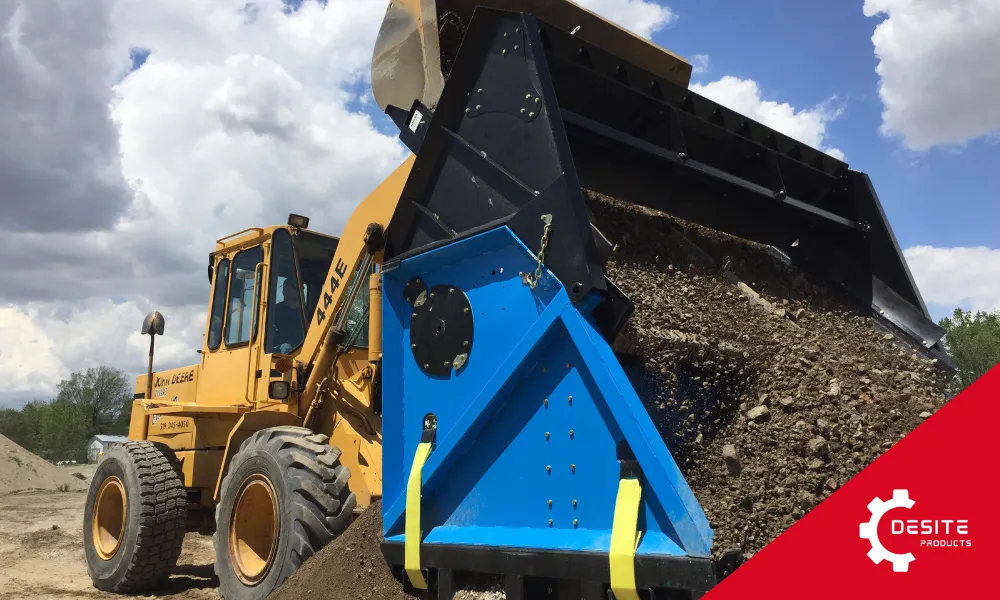

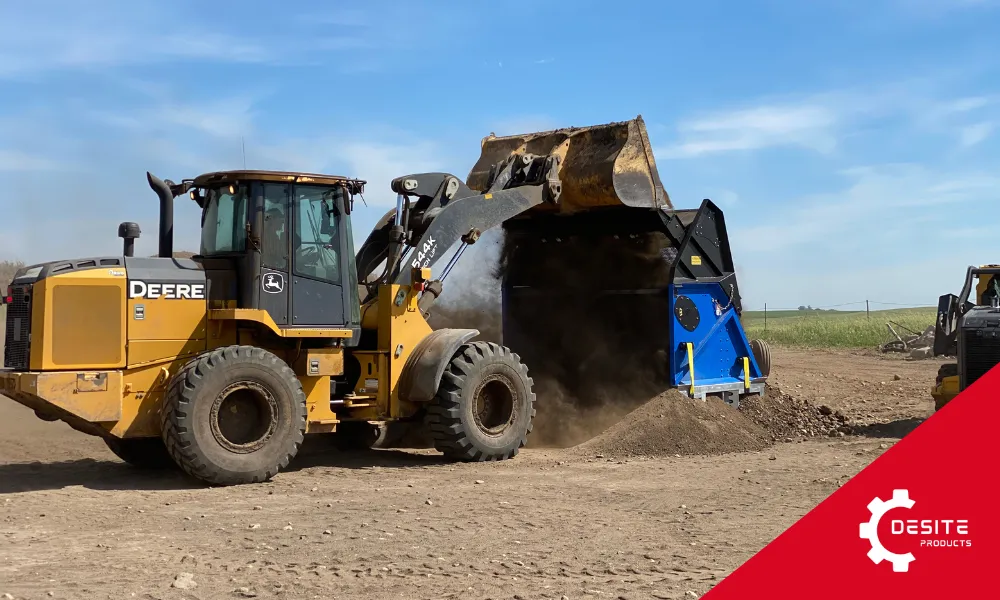

Feed the SLG 108VFRB with

Wheel Loaders

Backhoes

Compact Wheel Loaders

Skidsteers

Excavators

Compact Excavators

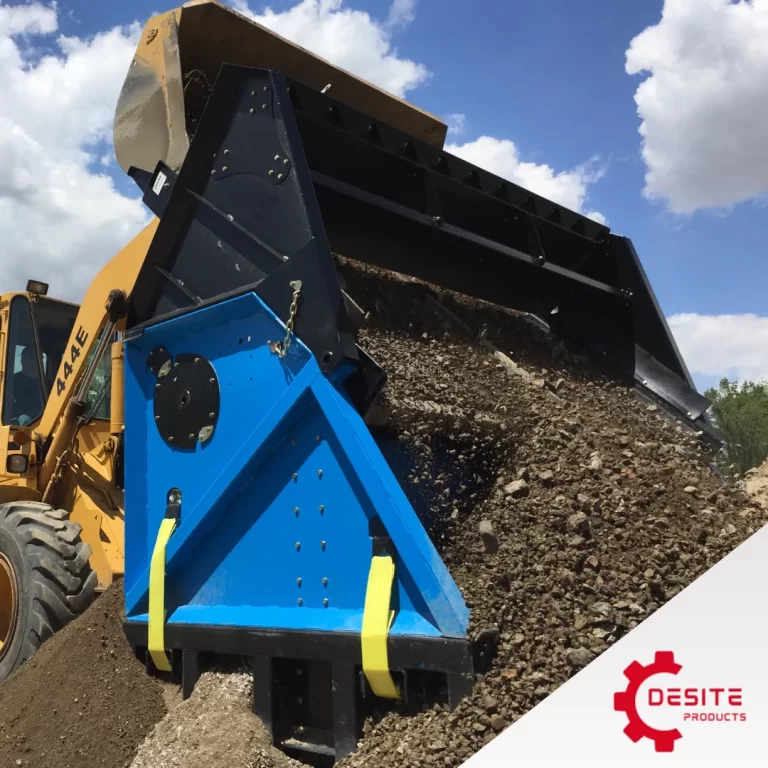

GENERAL DESCRIPTION

Designed with your full size and compact equipment in mind.

The SLG 108 can be fed with buckets up to and 108 inches wide.

Can be fitted with meshes large or small for screening many products.

We offer both square pattern and elongated for high moisture materials.

yards location

YOU CAN SCREEN

SCREENER FEATURES

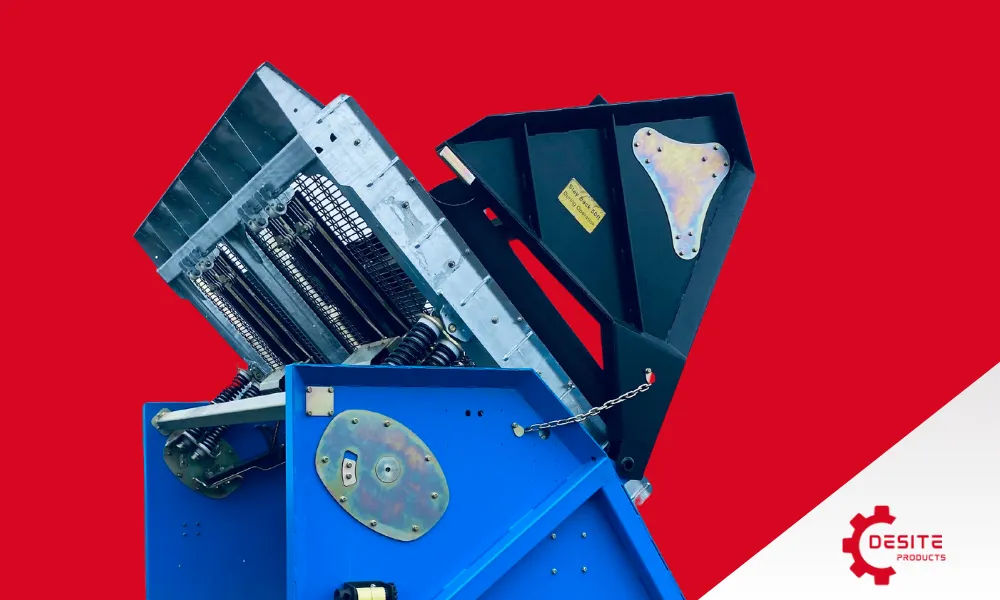

Tilt Open Feeder Deflection System

Only DeSite has the seat time experience to know the benefits of a Feeder Deflection System that not only helps to control flow but allows forces material to the top of the screen deck to begin the screening process.

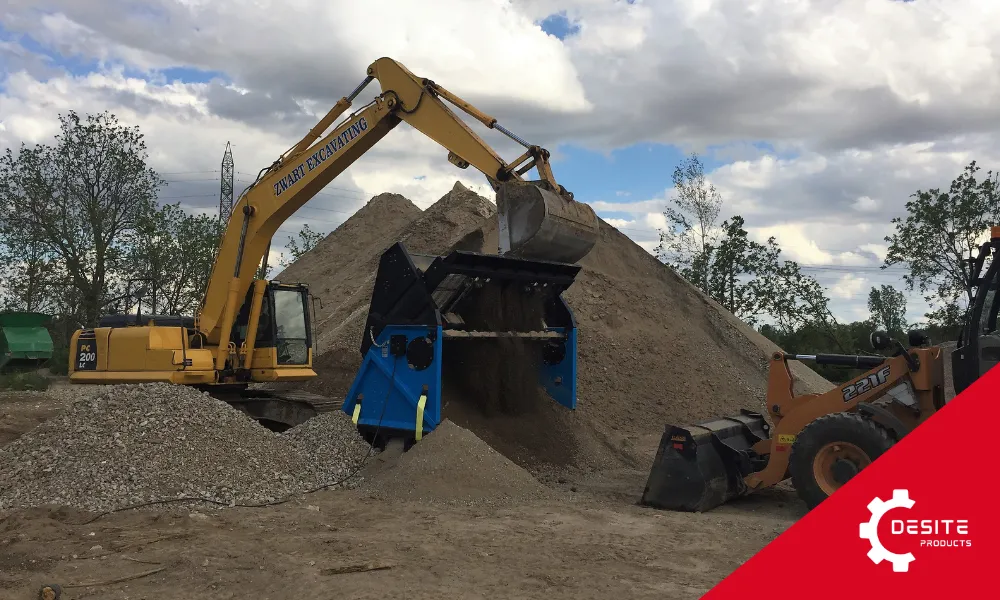

The 3ft x 10ft feeder also allows for excavators to feed the screener from all sides for maximum screening efficiency.

Desite has also designed the Feeder system to pivot open, allowing oversize material to pass through eliminating the need for anyone to be up in the feeder to dislodge large rocks, or wood chunks.

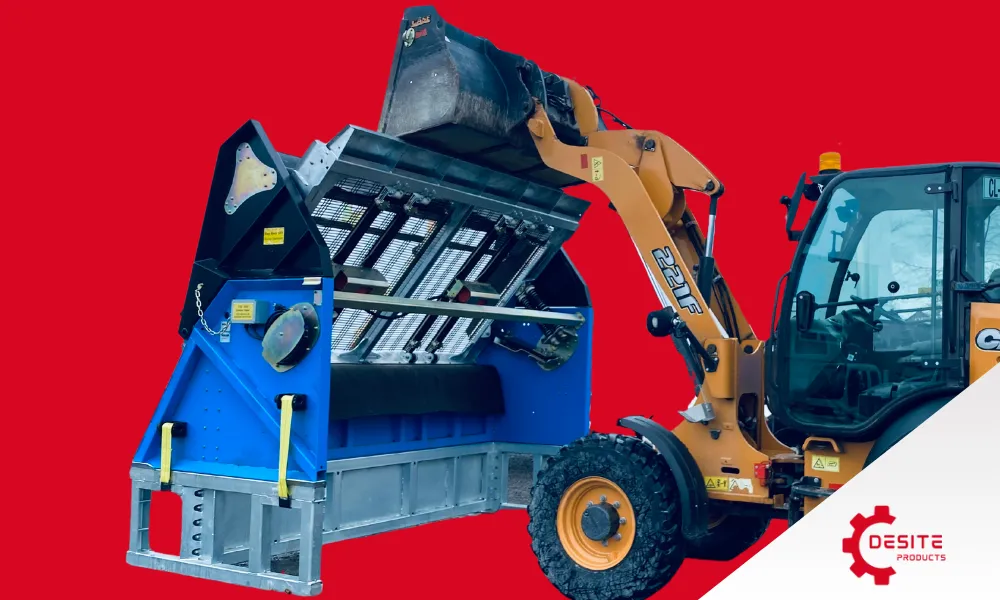

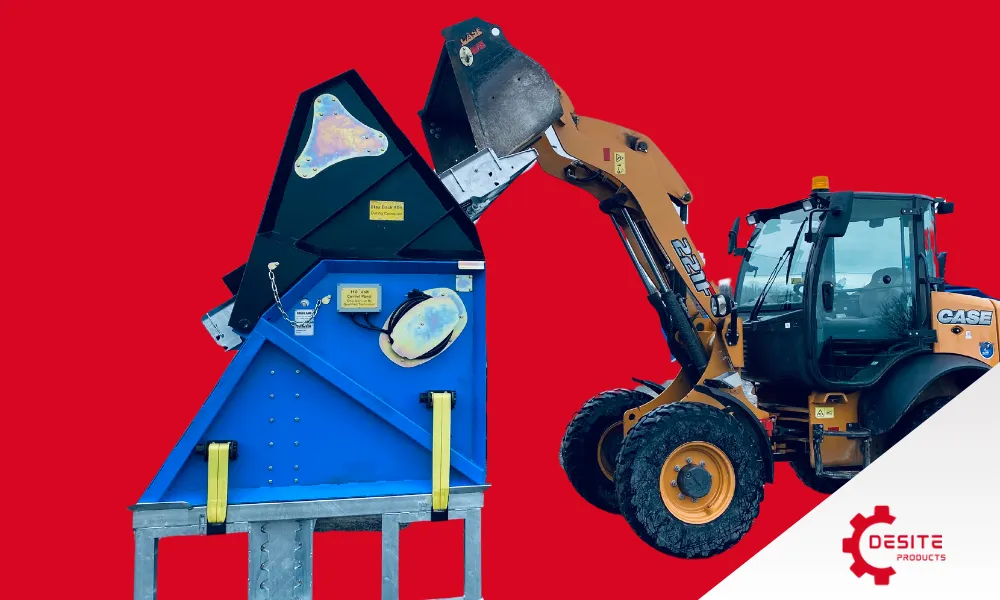

6ft x 10ft Tilting Screen Deck ( galvanized )

DeSite’s experience in screening is once again display with our Tilting Screen Deck design.

Giving the operator the ability to manipulate the deck slope for maximum screening efficiency allows for versatility when screen varying materials in varying conditions.

In the spring and fall when materials are usually wetter a steeper deck allows you to screen when others are waiting for drier weather.

In the summer when materials are drier the operator can flatten the deck slope to keep material on the deck longer for higher output and better screening efficiency.

Only DeSite designs allow the operator to make contact with the screen deck so that material do not drop vertically onto the screen mesh, eliminating the costs and need for a scalping deck.

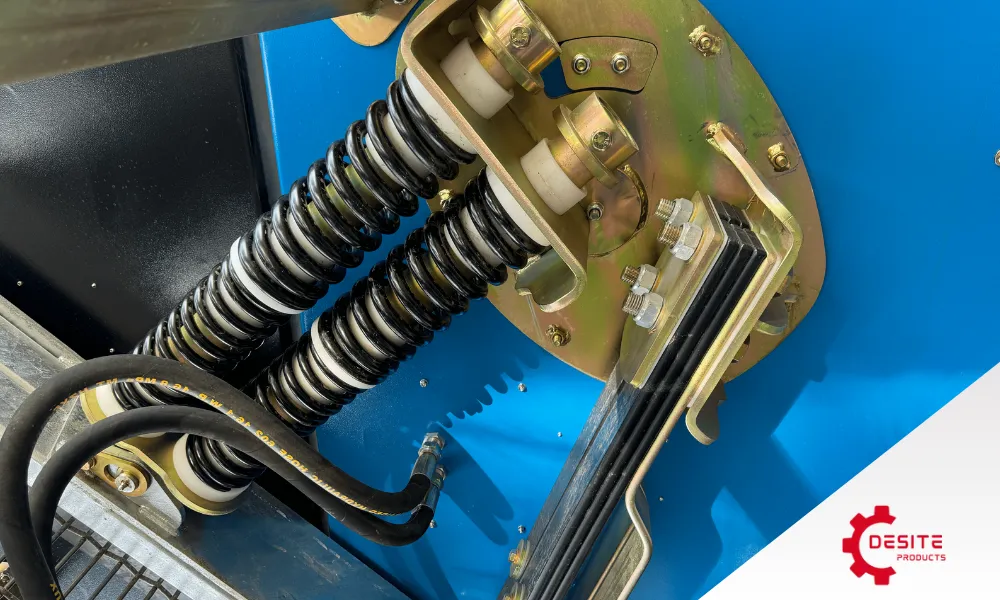

Cantilevered Screen Deck Suspension System

This rugged cantilevered screen deck suspension is all DeSite.

Built to absorb the shock of a bucket making contact with the screen deck, this suspension system works to cantilever the screen deck.

Pushing down on the top of the screen deck with the operators bucket brings the bottom up to create an action / reaction. This allows the screen deck to tilt faster up and down using less deck movement for a more aggressive screening action.

No other screener design has this ability to jump the screen deck up and down for dislodging rocks, sticks, and sod.

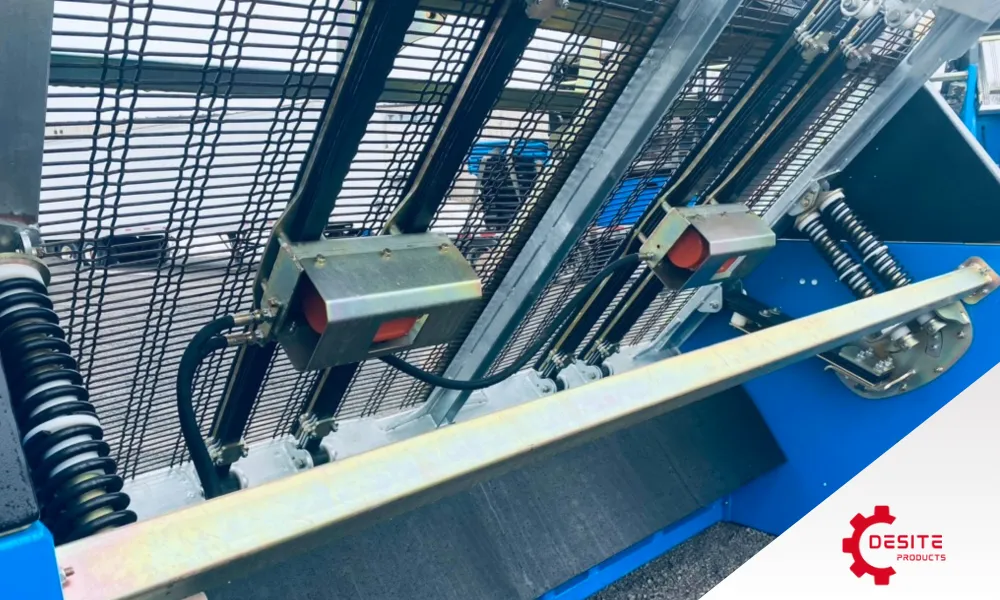

Dual 120 Volt (3600rpm) Vibratory Packs / with Power Box

DeSite has designed its screen deck into two 5ft x 6ft side by side mesh panels that each have there own 3600rpm 120 volt dual eccentric power packs. We have designed it this way so that the vibratory packs do not have to compete with each other to vibrate the entire screen deck.

At 3600rpm the vib packs do their job vibrating all the mesh wires so that wet materials resist sticking to the wire and plugging the mesh opening. Our tilting screen deck works hand in hand with our vibratory packs to move material across the screen deck to handle both wet and dry material efficiently.

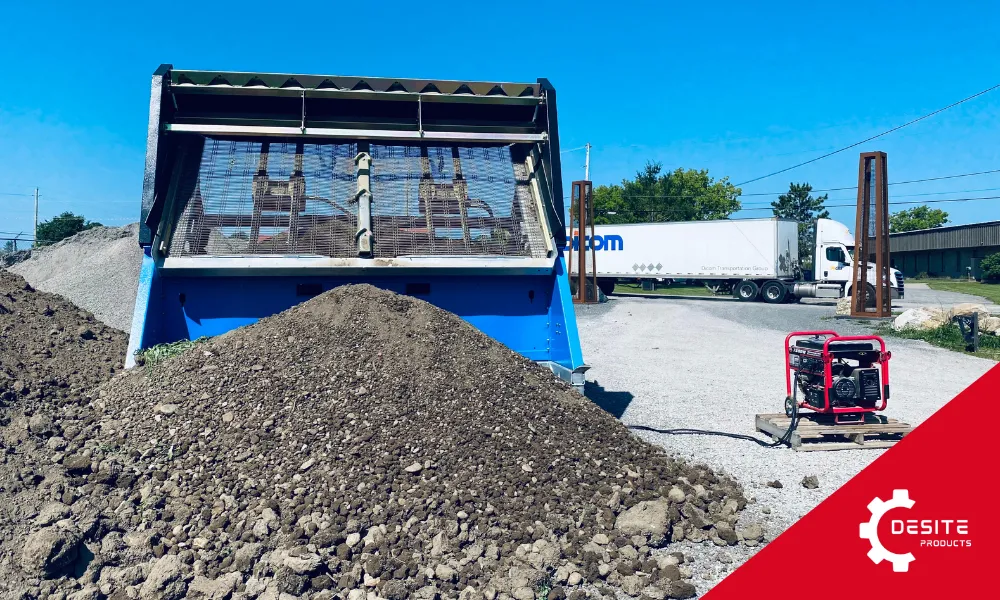

The SLG 108 can sue land power if within 75ft or a minimum of a 6500 watt generator to power the screener so the hourly operating costs are very low. Each vibratory pack has its own 25ft power cord and starting capacitor built in the water tight power box so that start up is easy and requires minimal power draw.

SCREENER ACCESSORIES

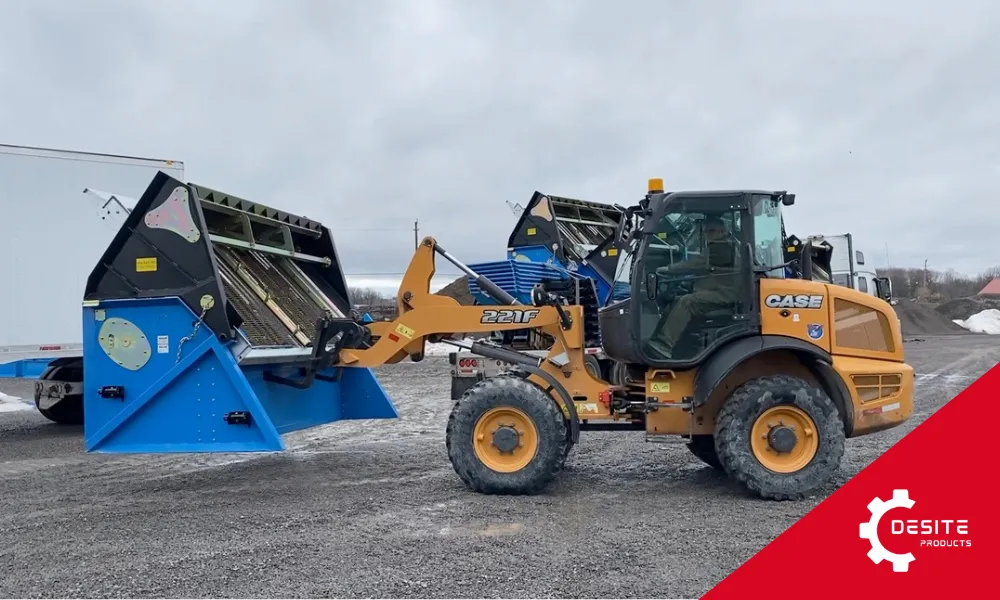

Bucket Transportation Lugs ( optional )

The SLG 108VF screener can be easily moved around the job site using just the bucket of your machine, thanks to our SLG 108 Bucket Transport Lugs.

This system allows you to keep your machine as close as possible to the material being screened, reducing cycle times and increasing the number of buckets processed per hour, which leads to higher hourly output.

Our fork and bucket lug transport system eliminates the need for wheels, axles, hitches, and wiring, reducing maintenance and simplifying the transport process.

Easy Onsite Mobility: Move the SLG 108VF screener around the job site using just the bucket of your machine, enhancing convenience and flexibility.
Increased Efficiency: Keeping your machine close to the material being screened reduces cycle times, allowing for more buckets per hour and higher overall output.
Simplified Transport: The fork and bucket lug system eliminates the need for wheels, axles, hitches, and wiring, reducing the complexity of transport.
Low Maintenance: With no wheels, axles, or wiring to maintain, the system offers a maintenance-free solution for moving the screener around the site.

$495 CAD

Quick Disconnect 24 in Riser Box ( galvanized )

The SLG 108 is both versatile and equipment friendly for both compact and full sized equipment. The 24 inch Riser Box will take the feed height from 8ft up to 10ft double the storage capacity of both the finished product and overs to over 6 cubic yards on both sides.

When up on the riser both and feeding with full sized equipment vision from the seat of the operators cab is excellent. The operator can see the entire screen deck and how the material is flowing over the deck.

Off the Riser Box and feeding with compact equipment the feed height comes down to 8ft for maximum feeding efficiency and maximum vision.

Removing or reinstalling the SLG 108 screener on or off the riser box takes less than five minutes with our four winch strap system.

Corrosion Resistance: The galvanized finish protects the Riser Box from corrosion, ensuring durability even when covered in soil and rock.
Increased Storage Capacity: Elevating the screener on the Riser Box allows for up to 5 yards of material storage on each side, enhancing productivity.
Heavy-Duty Construction: Weighing in at 1200 lbs, the Riser Box provides a sturdy and reliable base for your screener.
Enhanced Efficiency: By raising the screener, the Riser Box improves overall workflow, allowing for more efficient material handling and processing.

$2,700 CAD

MACHINE SPECIFICATIONS

MACHINE DIMENSIONS
Machine Width	126 inches
Machine Height	122 inches
Machine Depth	72 inches
SCREEN DECK
Screen Deck Width	120 inches
Screen Deck Length	72 inches
Screen Deck Surface area	58 sq/ft
Screen Deck Tilt Angle	45 to 30 Degrees
VIBRATORY SYSTEM
Vibratory Style System	Dual Eccentric Armature
Eccentric Rotation Speed	3600 rpm
Amperage Draw	10 each on start up with 5 Amps Amp draw per motor at 3600rpm
Eccentric Force rotation	760 lbs per/revolution
ELECTRICAL POWER SUPPLY
North America	110 Volt ( 60 Hertz )
Europe	220 Volt ( 50 Hertz )
South America	110 Volt ( 60 Hertz )
WEIGHT
Total Weight with riser box	5500 lbs
Total Weight without riser box	4300 lbs

ABOUT MESH

TALK ABOUT MESH

square

We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.By directing material flow to the top of the screen deck, this system ensures maximum production and efficiency. The SLG 108's deflector is designed with flexibility in mind, allowing it to open and close as needed to manage oversized materials effectively. Additionally, the 108's feed deflector fits into our quick disconnect lugs, making it easy to remove when necessary.

Elongated

Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.

QUICK CHANGE MESH SYSTEM

The Quick Change Mesh System allows you to swiftly swap out mesh sizes, enabling you to offer a variety of aggregate sizes and topsoil qualities tailored to your customers' needs. Our side-tensioned, crowned screen decks provide easy access to the mesh clamp bolts, making it simple to switch to an alternate mesh size for producing different products. We offer a wide range of mesh sizes, from small openings that produce a 1/16 inch product to large 4-inch square meshes for handling heavy rock.

Versatile Product Offering: Easily change mesh sizes to produce varying aggregate sizes and topsoil qualities, meeting diverse customer needs.
Efficient Mesh Swapping: Side-tensioned, crowned screen decks provide easy access to mesh clamp bolts, allowing for quick and hassle-free mesh changes.
Wide Range of Mesh Sizes: Options range from small openings that produce a 1/16 inch product to large 4-inch square meshes for heavy rock, accommodating a variety of screening applications.
Increased Productivity: Quickly adjusting mesh sizes enables you to efficiently produce different products, maximizing productivity and profitability.

MESH GUIDE

square

Mesh Size	Pattern	Product Size
5/32" x 5/32"	Square	1/16"
1/4" x 1/4"	Square	1/8"
3/8" x 3/8"	Square	1/4"
1/2" x 1/2"	Square	3/8"
1" x 1"	Square	3/4"
2" x 2"	Square	1-1/2"
3" x 3"	Square	2"
4" x 4"	Square	3"

Elongated

Mesh Size	Pattern	Product Size
3/8" x 4"	Elongated	1/4" to 5/16"
1/2" x 4"	Elongated	3/8" to 7/16"
3/4" x 4"	Elongated	1/2" to 9/16"
1" x 4"	Elongated	3/4" to 7/8"

SCREEN MESH RECOMENDATION CHART

Topsoil and Triple Mix

Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil.

Top Dressing Mesh Recommendation
Mesh Size	Product Size
1/8 x 4” elongated mesh	1/16 minus product
1/4 x 1/4 square mesh	1/8 minus product
1/4 x 4” elongated mesh	1/8 minus product
3/8 x 3/8 square mesh	1/4 minus product
3/8 x 4” elongated mesh	1/4 minus product

Fine Topsoil Mesh Recommendation
Mesh Size	Product Size
1/4 x 4” elongated mesh	1/8 minus product
3/8 x 4” elongated mesh	1/4 minus product
1/2 x 4” elongated mesh	3/8 minus product

COMPOST

Compost and either be a top dressing product used fertilizer / soil builder or can be used to create a triple mix with sand and topsoil.

Mesh Size	Product Size
3/8 x 3/8 square mesh	1/4 minus product
3/8 x 4” elongated mesh	1/4 minus product
1/2 x 1/2 square mesh	3/8 minus product
3/4 x 4” elongated mesh	1/2 minus product
1” x 4” elongated mesh	3/4 minus product
1” x 1” square mesh	3/4 minus product

Wood Mulch

Wood mulch is a light product that travels over the screen deck differently that a soil or aggregate product. It is recommended to run a bit bigger mesh. Often people will screen out the fines and mix it into the topsoil for slow release decomposition. It is a great way to recycle the wood fines.

Mesh Size	Product Size
1/2 x 1/2 square mesh	1/4 minus product
3/4 x 4” elongated mesh	1/2 minus product
1” x 4” elongated mesh	3/4 minus product
1” x 1” square mesh	1/2 minus product
2” x 2” square mesh	1-1/4 minus product
3” x 3” square mesh	2” minus product
4” x 4” square mesh	3” minus product

Commercial Grade or Triple Mix Topsoil

This is the mixture of topsoil / sand / compost to create a product that normally commands a premium price.

Mesh Size	Product Size
1/2 x 1/2 square mesh	1/4 minus product
3/4 x 4” elongated mesh	1/2 minus product
1” x 4” elongated mesh	3/4 minus product
1” x 1” square mesh	1/2 minus product
2” x 2” square mesh	1-1/4 minus product
3” x 3” square mesh	2” minus product
4” x 4” square mesh	3” minus product

Aggregate Products

Pea Stone

Often used in play grounds or for decoration. Pea stone usual commands a premium price asmost aggregate gets crushed and too sharp for pea stone.

Mesh Size	Product Size
3/8 x 3/8 square mesh	1/4 minus product
1/2 x 1/2 square mesh	3/8 minus product
1/2 x 4” elongated mesh	3/8 minus product
1” x 1” square mesh	3/4 minus product

Decorative Stone

In some regions water is restricted for yard use so decorative rock is the manageable and cost effective solution.

Mesh Size	Product Size
3/4 x 4” elongated mesh	5/8 minus product
1” x 1” square mesh	3/4 minus product
1-1/4 x 1-1/4 square mesh	7/8 minus product
1-1/2 x 1-1/2 square mesh	1-1/8 minus product
2” x 2” square mesh	1-1/2 minus product
3” x 3” square mesh	2-1/4 minus product
4” x 4” square mesh	3-1/4 minus product

Top Coarse Gravel

Finer road gravel works great for capping roadways.

Mesh Size	Product Size
3/4 x 4” elongated mesh	5/8 minus product
1” x 1” square mesh	3/4 minus product
1-1/4 x 1-1/4 square mesh	7/8 minus product
1-1/2 x 1-1/2 square mesh	1-1/8 minus product

Septic Stone

Many regions still use stone in their septic fields for the evaporation process.

Mesh Size	Product Size
1/2 x 1/2 square mesh	3/8 minus product
3/4 x 4” elongated mesh	5/8 minus product
1” x 1” square mesh	3/4 minus product
1-1/4 x 1-1/4 square mesh	7/8 minus product

Base Rock Gravel

The ability to separate out the smaller gravel make for a much better and more stable road base. I also then allows for the fines to be spread on top of the base coarse for a gradable surface.

Mesh Size	Product Size
1-1/2 x 1-1/2 square mesh	1-1/8 minus product
2” x 2” square mesh	1-1/2 minus product
3” x 3” square mesh	2-1/4 minus product
4” x 4” square mesh	3-1/4 minus product

Ground Asphalt

The screening and recycling of ground asphalt has become popular with the material coming in off repaving project. Once screened many people use the fine material on driveways and the bigger material on roads and lots with heavier traffic.

Mesh Size	Product Size
3/4 x 4” elongated mesh	5/8 minus product
1” x 1” square mesh	3/4 minus product
1-1/4 x 1-1/4 square mesh	7/8 minus product
1-1/2 x 1-1/2 square mesh	1-1/8 minus product
2” x 2” square mesh	1-1/2 minus product

Crushed Concrete

Screened crushed concrete makes great base material when building roads.

Mesh Size	Product Size
3/4 x 4” elongated mesh	5/8 minus product
1” x 1” square mesh	3/4 minus product
1-1/4 x 1-1/4 square mesh	7/8 minus product
1-1/2 x 1-1/2 square mesh	1-1/8 minus product
2” x 2” square mesh	1-1/2 minus product
3” x 3” square mesh	2-1/4 minus product
4” x 4” square mesh	3-1/4 minus product

Erosion Control Rock

Water flow can do a lot of damage through erosion. Erosion control rock works great to stabilize slopes or around culverts to reduce erosion during heavy rains.

Mesh Size	Product Size
1/2 x 4” elongated mesh	3/8 minus product
3/4 x 4” elongated mesh	1/2 minus product
1” x 4” elongated mesh	3/4 minus product
1” x 1” square mesh	3/4 minus product
1-1/4 x 1-1/4 square mesh	7/8 minus product
1-1/2 x 1-1/2 square mesh	1-1/8 minus product
