SLG 108
Feed the 108 ProScreen with
Wheel Loaders
Backhoes
Compact Wheel Loaders
Skidsteers
Excavators
Compact Excavators
GENERAL DESCRIPTION
The SLG 108 is our largest screener model, specifically designed for use with full-size equipment. With an impressive hourly production capacity of 30 to 60 yards per hour, this screener is built to handle large-scale operations with ease. It is compatible with buckets ranging from 84 to 108 inches, providing flexibility for various equipment sizes.
yards location
- Arnprior, ON.
- Windsor, NS.
- Clinton, BC.
YOU CAN SCREEN
- Sand
- Topsoil
- Compost
- Wood Mulch
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Ground Asphalt
- Crushed Concrete
- Erosion Control Rock
- Traction Sand
SCREENER FEATURES
TILTING SCREEN DECK
DeSite’s experience in screening is once again display with our Tilting Screen Deck design.
Giving the operator the ability to manipulate the deck slope for maximum screening efficiency allows for versatility when screen varying materials in varying conditions.
In the spring and fall when materials are usually wetter a steeper deck allows you to screen when others are waiting for drier weather.
In the summer when materials are drier the operator can flatten the deck slope to keep material on the deck longer for higher output and better screening efficiency.
Only DeSite designs allow the operator to make contact with the screen deck so that material do not drop vertically onto the screen mesh, eliminating the costs and need for a scalping deck.
Cantilevered Screen Deck Suspension System
This rugged cantilevered screen deck suspension is all DeSite.
Built to absorb the shock of a bucket making contact with the screen deck, this suspension system works to cantilever the screen deck.
Pushing down on the top of the screen deck with the operators bucket brings the bottom up to create an action / reaction. This allows the screen deck to tilt faster up and down using less deck movement for a more aggressive screening action.
No other screener design has this ability to jump the screen deck up and down for dislodging rocks, sticks, and sod.

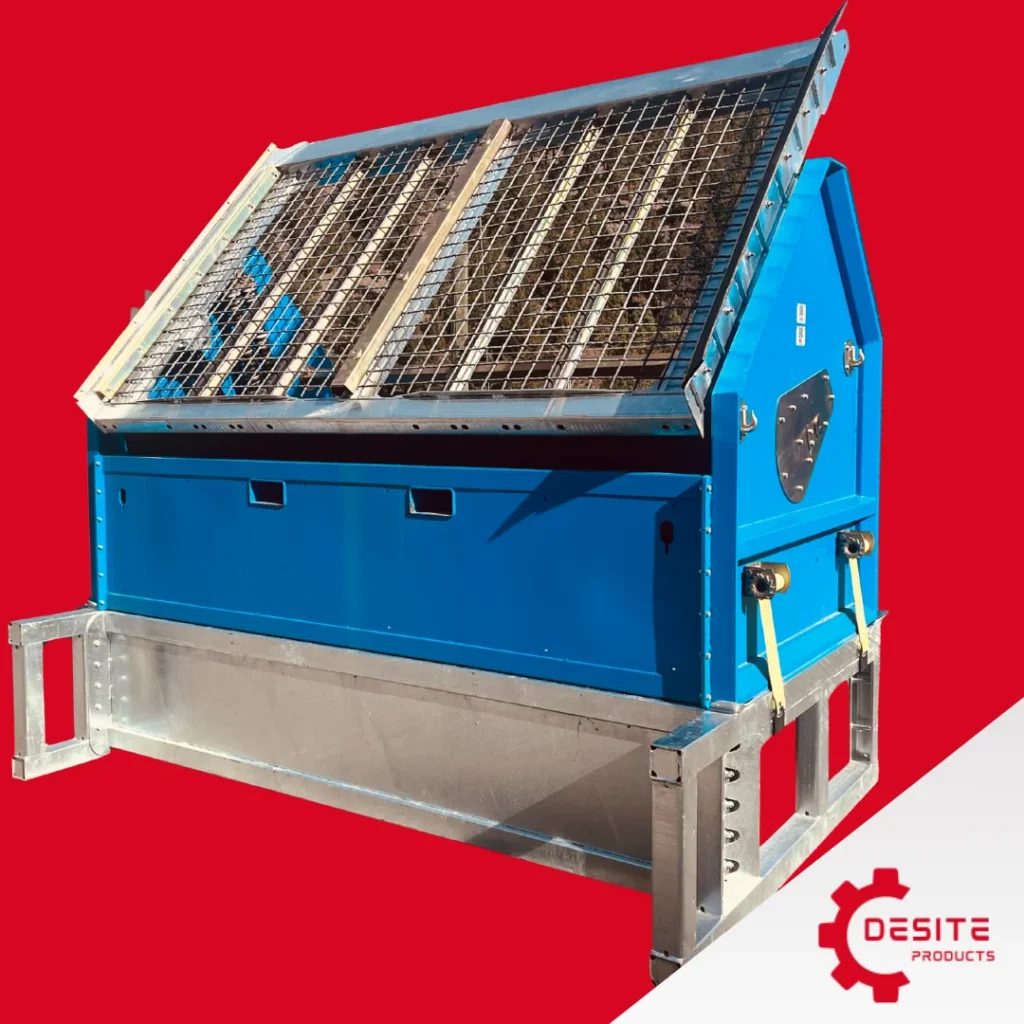

SCREENER ACCESSORIES
Bucket Transportation Lugs ( optional )
The SLG 108 screener can be easily moved around the job site using just the bucket of your machine, thanks to our SLG 108 Bucket Transport Lugs.
This system allows you to keep your machine as close as possible to the material being screened, reducing cycle times and increasing the number of buckets processed per hour, which leads to higher hourly output.
Our fork and bucket lug transport system eliminates the need for wheels, axles, hitches, and wiring, reducing maintenance and simplifying the transport process.
- Easy Onsite Mobility: Move the SLG 108 screener around the job site using just the bucket of your machine, enhancing convenience and flexibility.
- Increased Efficiency: Keeping your machine close to the material being screened reduces cycle times, allowing for more buckets per hour and higher overall output.
- Simplified Transport: The fork and bucket lug system eliminates the need for wheels, axles, hitches, and wiring, reducing the complexity of transport.
- Low Maintenance: With no wheels, axles, or wiring to maintain, the system offers a maintenance-free solution for moving the screener around the site.

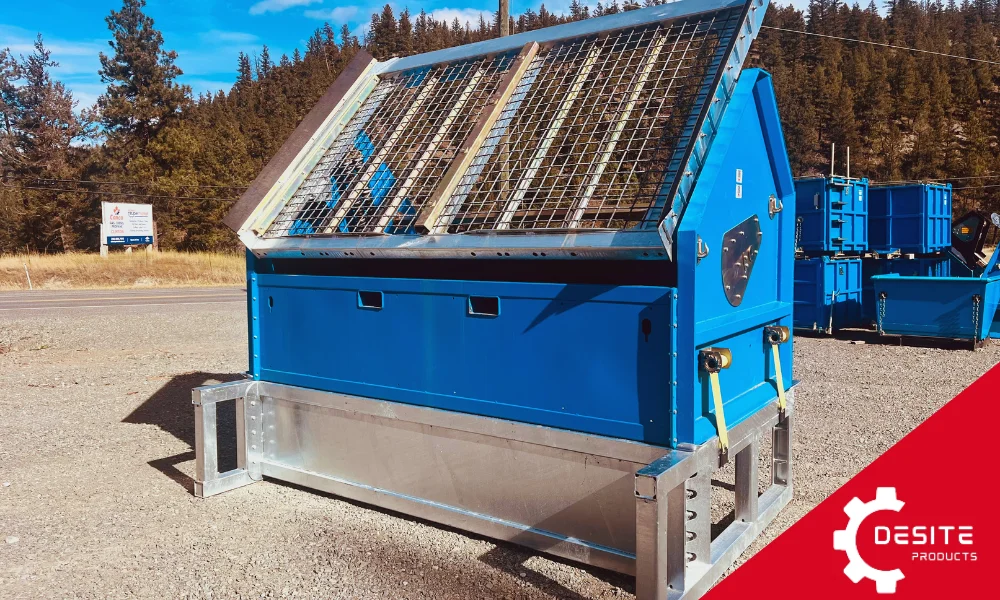

Riser Box
The SLG 108 is both versatile and equipment friendly for both compact and full sized equipment. The 24 inch Riser Box will take the feed height from 8ft up to 10ft double the storage capacity of both the finished product and overs to over 6 cubic yards on both sides.
When up on the riser both and feeding with full sized equipment vision from the seat of the operators cab is excellent. The operator can see the entire screen deck and how the material is flowing over the deck.
Off the Riser Box and feeding with compact equipment the feed height comes down to 8ft for maximum feeding efficiency and maximum vision.
Removing or reinstalling the SLG 108 screener on or off the riser box takes less than five minutes with our four winch strap system.
- Corrosion Resistance: The galvanized finish protects the Riser Box from corrosion, ensuring durability even when covered in soil and rock.
- Increased Storage Capacity: Elevating the screener on the Riser Box allows for up to 5 yards of material storage on each side, enhancing productivity.
- Heavy-Duty Construction: Weighing in at 1200 lbs, the Riser Box provides a sturdy and reliable base for your screener.
- Enhanced Efficiency: By raising the screener, the Riser Box improves overall workflow, allowing for more efficient material handling and processing.
MACHINE SPECIFICATIONS
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 126 inches |
| Machine Height | 122 inches |
| Machine Depth | 72 inches |
| SCREEN DECK | |
| Screen Deck Width | 120 inches |
| Screen Deck Length | 72 inches |
| Screen Deck Surface area | 58 sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| WEIGHT | |
| Total Weight with riser box | 5500 lbs |
| Total Weight without riser box | 4300 lbs |
ABOUT MESH
TALK ABOUT MESH
square
We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.By directing material flow to the top of the screen deck, this system ensures maximum production and efficiency. The SLG 108's deflector is designed with flexibility in mind, allowing it to open and close as needed to manage oversized materials effectively. Additionally, the 108's feed deflector fits into our quick disconnect lugs, making it easy to remove when necessary.
Elongated
Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.
QUICK CHANGE MESH SYSTEM
The Quick Change Mesh System allows you to swiftly swap out mesh sizes, enabling you to offer a variety of aggregate sizes and topsoil qualities tailored to your customers' needs. Our side-tensioned, crowned screen decks provide easy access to the mesh clamp bolts, making it simple to switch to an alternate mesh size for producing different products. We offer a wide range of mesh sizes, from small openings that produce a 1/16 inch product to large 4-inch square meshes for handling heavy rock.
- Versatile Product Offering: Easily change mesh sizes to produce varying aggregate sizes and topsoil qualities, meeting diverse customer needs.
- Efficient Mesh Swapping: Side-tensioned, crowned screen decks provide easy access to mesh clamp bolts, allowing for quick and hassle-free mesh changes.
- Wide Range of Mesh Sizes: Options range from small openings that produce a 1/16 inch product to large 4-inch square meshes for heavy rock, accommodating a variety of screening applications.
- Increased Productivity: Quickly adjusting mesh sizes enables you to efficiently produce different products, maximizing productivity and profitability.
MESH GUIDE
square
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 5/32" x 5/32" | Square | 1/16" |
| 1/4" x 1/4" | Square | 1/8" |
| 3/8" x 3/8" | Square | 1/4" |
| 1/2" x 1/2" | Square | 3/8" |
| 1" x 1" | Square | 3/4" |
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
Elongated
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3/8" x 4" | Elongated | 1/4" to 5/16" |
| 1/2" x 4" | Elongated | 3/8" to 7/16" |
| 3/4" x 4" | Elongated | 1/2" to 9/16" |
| 1" x 4" | Elongated | 3/4" to 7/8" |
SCREEN MESH RECOMENDATION CHART
Topsoil and Triple Mix
Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil.
| Mesh Size | Product Size |
|---|---|
| 1/8 x 4” elongated mesh | 1/16 minus product |
| 1/4 x 1/4 square mesh | 1/8 minus product |
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| Mesh Size | Product Size |
|---|---|
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
COMPOST
Compost and either be a top dressing product used fertilizer / soil builder or can be used to create a triple mix with sand and topsoil.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Wood Mulch
Wood mulch is a light product that travels over the screen deck differently that a soil or aggregate product. It is recommended to run a bit bigger mesh. Often people will screen out the fines and mix it into the topsoil for slow release decomposition. It is a great way to recycle the wood fines.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Commercial Grade or Triple Mix Topsoil
This is the mixture of topsoil / sand / compost to create a product that normally commands a premium price.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Aggregate Products
Pea Stone
Often used in play grounds or for decoration. Pea stone usual commands a premium price asmost aggregate gets crushed and too sharp for pea stone.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Decorative Stone
In some regions water is restricted for yard use so decorative rock is the manageable and cost effective solution.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Top Coarse Gravel
Finer road gravel works great for capping roadways.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
Septic Stone
Many regions still use stone in their septic fields for the evaporation process.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
Base Rock Gravel
The ability to separate out the smaller gravel make for a much better and more stable road base. I also then allows for the fines to be spread on top of the base coarse for a gradable surface.
| Mesh Size | Product Size |
|---|---|
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Ground Asphalt
The screening and recycling of ground asphalt has become popular with the material coming in off repaving project. Once screened many people use the fine material on driveways and the bigger material on roads and lots with heavier traffic.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
Crushed Concrete
Screened crushed concrete makes great base material when building roads.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Erosion Control Rock
Water flow can do a lot of damage through erosion. Erosion control rock works great to stabilize slopes or around culverts to reduce erosion during heavy rains.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
